The Tandberg Data RDX QuikStor media-based removable storage system offers rugged, reliable and convenient storage for backup, archive, data interchange and disaster recovery.

Capacity :

Compatibility :

Transfer Rate Average :
Average access time :
Interface :
Interface Connector :
Interface Operation :


500GB, 1TB, 2TB, 3TB, 4TB, 5TB of hdd or
128GB or 256GB of solid-state disk on one media
Forward/backward compatibility to
all RDX drives and systems
USB3.0 Up to 260 MB/s, SATA III up to 330 MB/s
< 15 ms
SATA III or USB3.0 SuperSpeed
SATA III: SATA, USB3.0: Type-B
SATA III: Removable Disk
USB3.0: Removable Disk & Fixed Disk

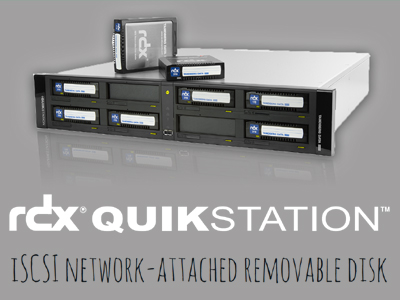

       RDX QuikStation is an iSCSI network-attached removable disk appliance designed to provide a flexible platform for data protection and off site disaster recovery for physical or virtual SMB and SME environments.


Form Factor :
Capacity :
Compatibility :
Transfer Rate :
Network :

Media Drive :

QuikStation 4
1U Rackmount
Media dependent (online)
4 RDX Media
Up to 200MB/s
2 x 1GbE

4 x RDX drives

QuikStation 8
2U Rackmount
Media dependent (online)
8 RDX Media
Up to 400MB/s
4x 1GbE
optional up to 1000MB/s
8 x RDX drives

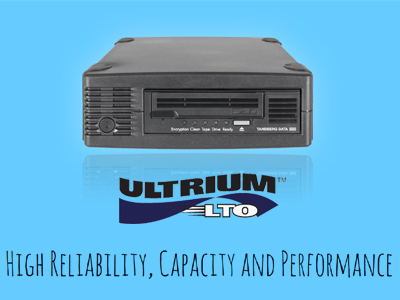

       The Overland-Tandberg LTO-8 tape drive technology is the newest LTO-generation and follows the roadmap of the LTO consortium, which now includes 12 generations.

Capacity :
Transfer Rate :
Memory Buffer Size :
Data Access Speed :
Data Compression :
Encryption :
Read/Write :
Interface :
MTBF Hours :

12TB (native) / 30TB* (compressed)
300 MB/s (native) / 750 MB/s*(compressed)
1GB
50 sec.
16KB (2.5:1)
AES 256-bit
LTO Ultrium 8, LTO Ultrium 7
6GB SAS/SFF 8088
250,000 hours @ 100% duty cycle

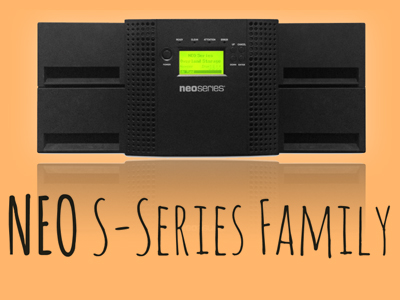

       Enter Overland Storage where we recognize the need for your business to do more with less, and help address your small-to-medium sized business storage needs with the NEOs family of tape library solutions.

tape cartridge slots :
Tape Drives Supported :

mail slots :
Capacity (max) :


Host Interface :
Connectors :
Physical Specifications :

8, 24, 48
1-4 LTO-HH Drive
LTO-8, LTO-7, LTO-6, LTO-5
1-3
8 Slot - LTO-8: 96TB / 240TB
12-24 Slot - LTO-8: 288TB / 720TB
48 Slot - LTO-8: 576TB / 1,4PB
6Gb SAS, 8Gb FC
Mini-SAS, LC Optical FC
8 Slots - 1U, 12-24 Slots - 2U, 48 Slots - 4U

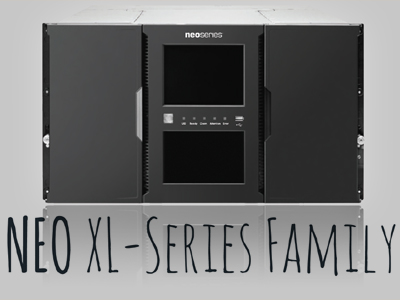

       The NEO XL-Series addresses the need for midrange and enterprise businesses to do more with less by providing effortless automated backup that combines flexibility, density, high-performance and affordability to ensure that data is protected faster, smarter, easier and more cost effectively.

tape cartridge slots :
tape drives :
Tape Drives Supported :
mail slots :
Capacity (max) :
Host Interface :

High availability features :
Form Factor :

32-560 Slots (1 base + expandsions)
3-42
LTO-8, LTO-7, LTO-6, LTO-5
5, 10, 70
1.0PB- 16.8PB
6Gb Mini-SAS, 8Gb LC Optical FC (control path),
1GbE RJ-45 (management)
Redundant data and control path,redundant power
3U - 42U

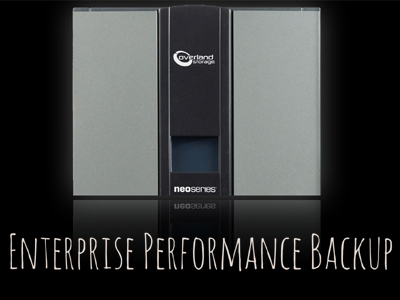

       NEO 8000e provides the long-term data storage and archiving solution for organizations with massive amounts of data. Embedded robustness, flexibility and intelligence are the cornerstone of the NEO 8000e, making it the ideal solution for the most demanding data centers.

Number of cartridge :
No. of cartridge drawers :
No. of slots per drawer :
fixed cartridge cells :
Tape drives :
mail slots :
Tape drives supported :
Interfaces :
Capacity (LTO7) :
Form Factor :

100, 500,
1, 6
80
20
12
15
LTO-8,LTO-7, LTO-6, LTO-5
8Gb FC, LC optical connection
600TB/1.5PB - 5PB/7.5PB
43U full rack height
